SIMATIC WinCC Unified

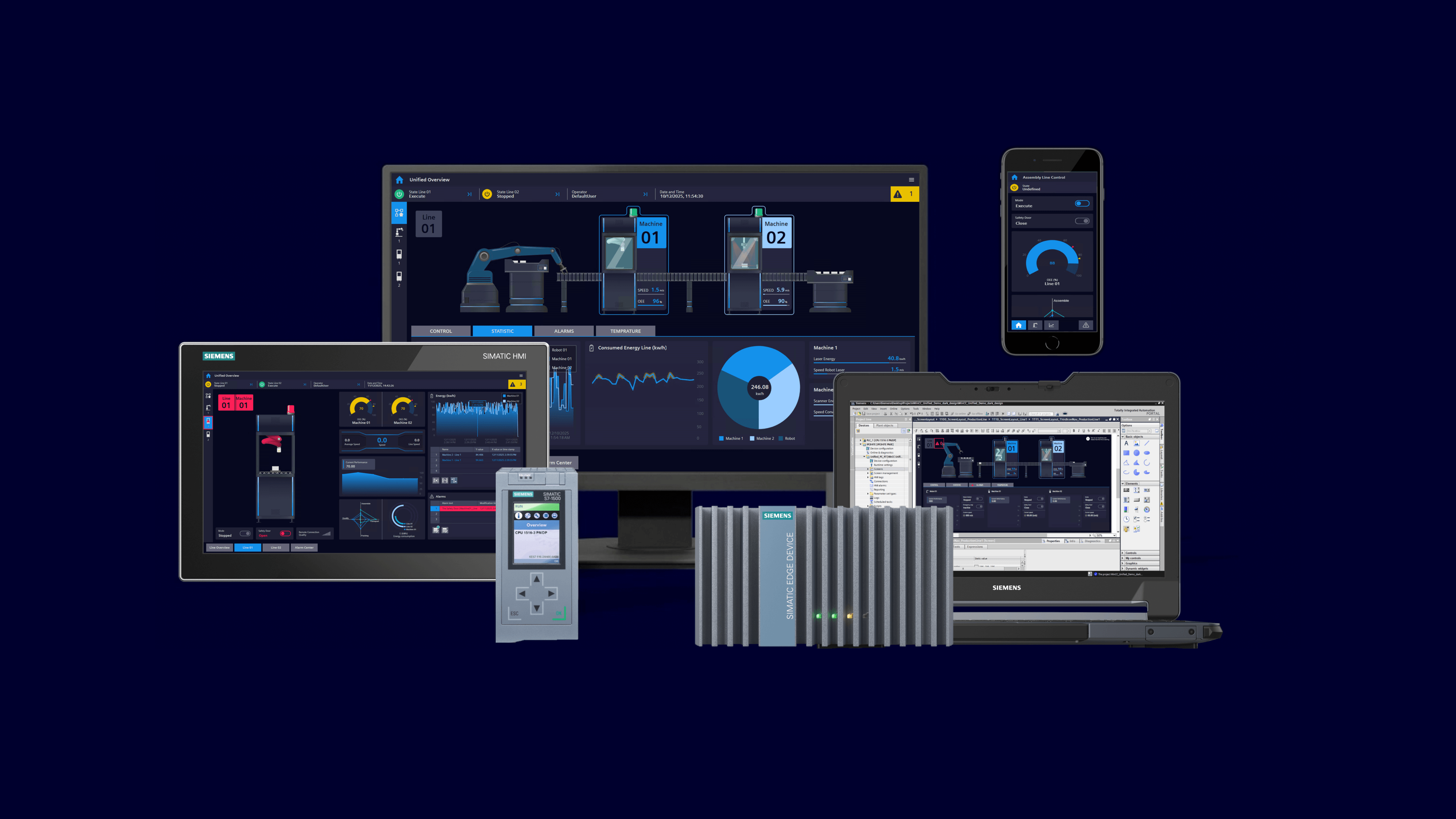

SIMATIC WinCC Unified can be used from small, machine-level solutions with basic functions offering innovative operating concepts also for use in special environmental conditions, such as in hazardous, hygienic and extreme areas or shipbuilding to plant-wide supervisory control and data acquisition (SCADA) systems scalable and flexibly expandable to suit all applications.

Integrated Connectivity
Besides direct integration of S7-controllers, WinCC Unified offers native connectivity to PLCs of other vendors (e.g. Modbus, Allen Bradley, Mitsubishi). Standardized interfaces like OPC UA DA, OPC Alarm and Condition (A&C) or MQTT enable the flexible integration of production lines.

Integrated arching
The integrated file-based archiving is easy to use and securely archives your production data and alarms.

User management and access control
User rights, roles as well as individual function rights are configured via local or central user administration and access control. This protects your visualization and data from unauthorized access.

Intuitive operating concepts
Operation with multitouch gestures makes operation enables operation concepts via zooming, panning and decluttering or a safe 2-hand operation.

Open for extensions
Due to the full integration of web-based tools, controls or own applications can be integrated into the visualization - no switching between different tools.

Access without apps and plug-ins
Maintenance-free web clients allow direct remote access to the HMI via web browser. Communication protocols are encrypted and, together with certificates, ensure maximum security against unauthorized access.

The SIMATIC WinCC Unified options provide solutions for advanced requirements.

Working with recipes
Machine or production parameters are defined, based on single data or entire UDTs (User Data Types) from the PLC and managed with the “Parameter Control” option. Synchronization between PLC and HMI is done by the operator via the user interface or fully automated.
WinCC Unified Parameter Control >

Generate production reports
Using individual Excel templates, production reports are generated at runtime in various formats and distributed by e-mail via a dedicated or public e-mail server.
The “Report Execution” option allows operator or automated triggering.
WinCC Unified Report Execution >

Tracking of user actions
The “Audit” option allows quality assurance to trace user actions when changing process values through documentation and electronic signature.
The data are stored securely and made available in the HMI or as a report, which helps to implement legal requirements.
WinCC Unified Audit >

Establish distributed configurations
With the "Collaboration“ option , links between HMI Unified Comfort Panels and PC-based WinCC Unified stations are configured during engineering in TIA Portal.
This reduces engineering effort and offers seamless integration and uniform usability, e.g., for line visualization.
WinCC Unified Collaboration >

Compared to traditional automation, modular automation enables flexible manufacturing by allowing a production line to be divided into mobile modules and reconfigured quickly. This modular design makes it easier to meet different requirements.

Module Type Package (MTP) standard as modularization enabler
When operating a modularly structured plant, the integration of process units from different manufacturers often involves a great deal of effort and problems, especially due to the use of different communication protocols and interfaces. Standardization is the key to open and flexible automation and plant concepts. This is where MTP comes into play. Module Type Package (MTP) is a formal description of the interfaces and functions of the automation technology of a modular process unit. MTP is standardized in the VDI/VDE/NAMUR 2658 guideline and enables manufacturer-independent integration of process units into a higher process control level. In the standard, a process unit is referred to as a PEA (Process Equipment Assembly) and the process control layer is referred to as a POL (Process Orchestration Layer). WinCC Unified can be used for Machine-level (PEA) and orchestration-level (POL) scenarios.

For the machine-level or module layer, the plant operator must be supplied in advance with fully automated, independently executable and tested modules. For this purpose, Siemens provides tools and libraries that support the creation of the required MTP files for these process units. The SIMATIC MTP Studio enables the creation of an MTP file based on TIA Portal projects. The engineering data from STEP 7 and WinCC Unified is used for this purpose.
SIMATIC MTP Studio >

To integrate the modules in the process integration layer(POL), the higher-level automation system must also be able to process the MTP files. The SIMATIC MTP Integrator for WinCC Unified offers the option of importing MTP files from machine configurations from different manufacturers into a SCADA system and visualizing them in a uniform manner, providing a separate faceplate library.
SIMATIC MTP Integrator for WinCC Unified >

The SIMATIC Control Function Library (CFL) is an object-oriented block library for the TIA Portal (STEP 7 Basic / Professional and WinCC Unified), which is developed, tested and maintained with a clear focus on quality and lifecycle support. This library enables you to perform a wide variety of automation tasks very efficiently, while making significant reductions in the engineering overhead and the project duration. The SIMATIC Control Function Library can be used for both MTP-relevant and non-MTP-relevant applications.
SIMATIC Control Function Library >

Find the right learning offer for you in various learning formats for the SIMATIC HMI course portfolio for visualization in SITRAIN and Unified Academy!

Access SITRAIN HMI Training Guide >
Access Unified Academy >

A free 21-day trial software for WinCC Unified Engineering and Runtime simulation is available for free download via SiePortal:
SIMATIC WinCC Unified Engineering TRIAL Download >
SIMATIC WinCC Unified PC Runtime V21 Simulation & Trial >

In addition, we offer a free 180-day trial to customers enrolled in Unified Academy, enabling to explore the full SCADA functionality, engineering tools, and web-based visualization features, of WinCC Unified PC .

Use the OnlineDocumentation portal TIA docu for WinCC Unified for more information.

Stay up to date and get the latest the SIMATIC WinCC Unified news and special offers like attractive starter packages here: Get News >

Find everything you need to support the transition to Unified Panels:
Discontinuation Info: Details on the phase-out timeline and key talking points.
Modernization Tools: Resources to simplify migrating projects.
Training & Documentation: Guides and learning materials to help you and your customers succeed.
Use these materials to guide your customers confidently through the modernization process.
Your Go-To Place for Modernization Resources >
