Also known as a ground fault circuit interrupter, an RCD is a safety device that protects people from electric shocks by immediately cutting off the power in the event of a fault current. The RCD monitors the current flow in an electrical circuit and compares the incoming current with the outgoing current. If a difference is detected, this means that some of the current has taken an alternative path, such as through a person receiving a shock.

When does the RCD trip?

To detect and prevent faults, the RCD is equipped with a differential current transformer. This generates a magnetic flux proportional to the differential current. If the differential current exceeds a certain preset value, e.g., 30 mA, the magnetic flux becomes strong enough to trigger a switching mechanism and interrupt the circuit. The rapid tripping of the RCD prevents people from being exposed to a dangerous current (greater than 30 mA). It is important to regularly check that the RCD is functioning correctly to ensure safety in electrical installations. Available versions to meet specific requirements Selective (S): With an impulse withstand strength greater than 5 kA, the switch enables selective disconnection of individual system sections. Super-resistant (K): These switches provide an impulse withstand strength greater than 3 kA, helping to prevent unwanted shutdowns. Typical applications are LED lighting, cooling devices, or electrical ballast. Patented SIGRES version: For harsh ambient conditions like indoor swimming pool facilities, agriculture, industry, or marinas. Thanks to the integrated condensation protection, they offer maximum safety and a long service life.

What to do if the RCD trips?

If the fuse blows, i.e., the RCD trips and interrupts the circuit, you should determine and fix the cause of the trip before switching it back on. Possible causes include a faulty electrical device, a damaged cable, a short circuit, or a wiring fault. If the RCD has tripped, there are several steps that can be taken: Check all appliances and plugs : Disconnect all appliances from the mains and reconnect them one by one to identify the faulty appliance. Locate the fault current : Check the electrical circuit for possible insulation faults or short circuits. In such cases, an electrician should be consulted. Switch off all circuit breaker s downstream of the RCD: This ensures that no current flows to the RCD and it can be reset. Resetting the RCD : After checking all possible sources of error, you can reset the RCD by switching it back on. However, if the RCD trips again, an electrician should be consulted.

Can I simply switch the RCD back on?

Once the cause has been rectified, the RCD can be switched back on. However, it is advisable to have this done by a qualified electrician to ensure that everything is functioning correctly and that no further risks remain.

What type of RCD should I use?

It's important to use the correct type of RCD (according to local regulations and standards) installed by a qualified electrician. Such as: Type A trips in response to both sinusoidal alternating fault currents and pulsating direct fault currents. They are primarily used for single-phase loads with integrated electrical components. Type F : Single-phase frequency converters, such as washing machines, can generate fault currents from a frequency mixture with components in the kHz range. Type F RCDs protect against this, offering surge current withstand capability and can handle smooth DC fault currents. Type B protect against smooth DC fault currents, use SIQUENCE all-current sensitive residual current circuit breakers 5SV3 Type B/B+ with integrated SIGRES function.

What happens if you don't use an RCD?

The RCD plays an important role in protecting people and property from the dangers of residual currents. Without an RCD in the electrical installation, there is an increased risk of electrical accidents and electric shocks. Without an RCD, a residual current caused by a faulty conductor, a short circuit, or an electric shock may go undetected. This can lead to serious injuries, especially if the residual current flows through a person’s body.

Is it mandatory to use an RCD?

RCD requirements can vary depending on the country, region, and type of electrical installation. However, in many countries and regions, there is a legal obligation to use RCDs in certain areas or for certain types of electrical installations. In Germany, for example, the use of RCDs is legally mandated.

Which electrical circuits must be protected?

According to the German standard DIN VDE 0100-410, all final circuits up to 32 A must be protected by an RCD in residential, commercial, and public buildings. This means that in many cases, installing an RCD is mandatory. However, the installation of an RCD is not required for all households, particularly in older buildings (grandfather clause). The exact requirements depend on the type of installation and the specific regulations. It is strongly recommended to have an RCD in your electrical installation and to regularly check that it is functioning correctly. A qualified electrician can assist with installation and testing.

Is it possible to retrofit and connect to an RCD?

In most cases, it is possible to retrofit an RCD into an existing electrical installation. An electrician will first inspect the electrical system to determine if it is suitable for the installation of an RCD. This includes checking the existing wiring, the distribution box and other relevant components. If necessary, additional wiring or components will need to be installed to properly integrate the RCD into the system. The electrician will then connect and configure the RCD in accordance with applicable standards and regulations.

How long does an RCD last

An RCD can typically last several years to decades. The average lifespan of an RCD is usually specified by the manufacturer and can vary depending on the model. However, there are some factors that can affect lifespan: Quality : A high-quality RCD manufactured according to applicable norms and standards tends to have a longer lifespan. Environment : Extremely high or low temperatures, humidity, dust, or chemical vapors can shorten the lifespan of the RCD. Usage : Repeated tripping can lead to wear and tear and shorten RCD lifespan. Maintenance: Regular maintenance and inspections of the electrical system can help to identify and resolve potential problems early, which can extend the RCD lifespan. It is important to regularly check the RCD and replace it if necessary to ensure safety. If there is any doubt about the proper functioning of the RCD, it is advisable to consult a qualified electrician.

RCD switches – simply explained

Safely disconnect the power in the event of a fault with residual current devices (RCDs) – essential in building electrical distribution boards. Here you will learn how to connect RCDs, what to do if the fuse blows, and what types of RCDs are available.

Understanding RCD operation

Residual Current Devices (RCDs) are among the most important safety devices in modern electrical installations. They protect people and property from dangerous residual currents, which can occur due to faulty electrical appliances, damaged cables, or accidental contact with live parts.

Unlike conventional fuses or circuit breakers, an RCD does not respond to overloads. Instead, it continuously monitors the difference between the outgoing and returning current in an electrical circuit. If even a small imbalance is detected, the RCD can identify the hazardous condition within milliseconds and immediately disconnect the affected circuit.

SENTRON residual current protective devices (RCD) - 5SV1

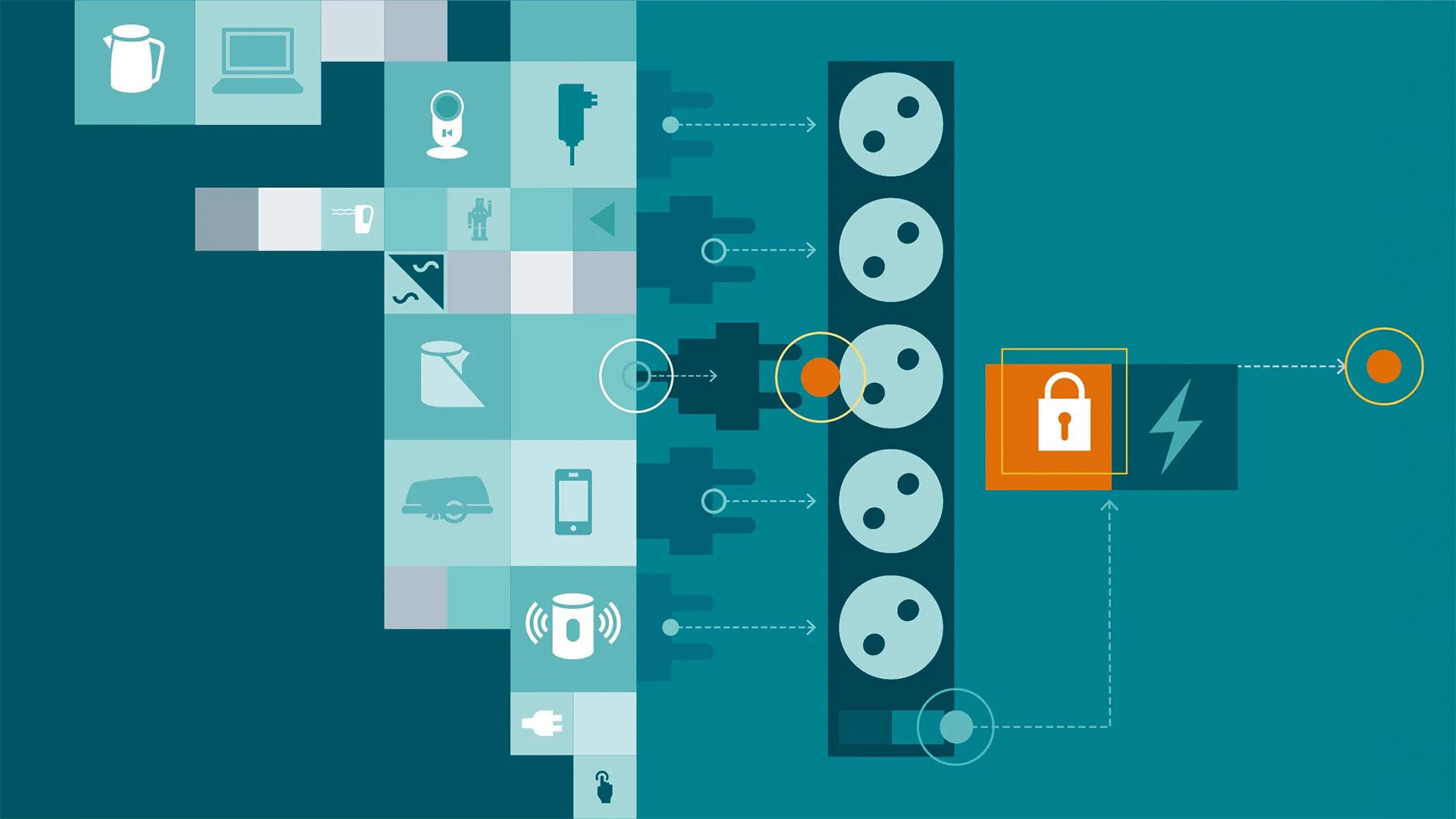

There are often more than 70 energy-consuming devices in a household

Identifying faults and taking the right action

An RCD does not trip without a reason. When it disconnects the circuit, it indicates a fault in the electrical installation or in a connected device. Common causes include faulty electrical appliances, damaged cables, moisture, or insulation faults. In modern households, the growing number of electrical devices also means there are more potential sources of faults. Today, the average household in Germany has more than 70 electrical devices.

Although power can often be restored quickly, the cause of the trip should always be identified and resolved before the RCD is switched back on.

Choosing the right RCD

Not all RCDs are the same. Depending on the application and the type of electrical load, different types of RCDs are required. They mainly differ in the types of residual currents they are able to detect and reliably disconnect. Choosing the right RCD is essential for the safety of the entire electrical installation and should always be based on the specific application.

In practice, the selection depends not only on applicable regulations and standards, but also on the technical characteristics of the connected equipment – from standard household appliances to modern electronic systems with complex power electronics.

RCD standards and regulations

The use of RCDs is governed by national standards and regulations and may vary depending on the country, building type, and electrical installation. In many modern electrical installations, the use of RCDs is mandatory, particularly in areas where enhanced electrical safety is required.

In Germany, for example, current standards require certain circuits to be protected by an RCD. However, requirements may differ between new and existing installations, as older buildings may be exempt from current regulations. Nevertheless, the use of RCDs is widely recognized as an essential electrical safety measure and is strongly recommended.

Installing and replacing an RCD

In many cases, an RCD can be retrofitted into an existing electrical installation, as long as the necessary technical requirements are met. To ensure safe and standards-compliant operation, the entire electrical installation should be inspected and adapted as required.

However, the service life of an RCD is not unlimited. Although RCDs are designed for long-term operation, factors such as product quality, environmental conditions, frequency of operation, and maintenance can affect their service life. Regular inspections and timely replacement, when necessary, are therefore essential to ensure the long-term safety of the electrical installation.

Explore related RCD resources

White paper

The changing world of building electrical systems

Electrical installations face growing complexity, new loads and higher safety demands. Discover how modern solutions help make buildings more efficient, safer and ready for future energy and connectivity needs.

Infographic

Preventing electrical accidents

Learn how RCDs protect from residual currents and prevent electrical accidents by quickly disconnecting the circuit.

A Siemens powerpoint slide with a visual representation of a power system and a diagram of a power supply system.

Product info

SENTRON residual current protective devices (RCDs)

SENTRON residual current devices protect people, installations, and equipment. These RCDs safely disconnect the power supply in the event of a fault.

Knowledge base

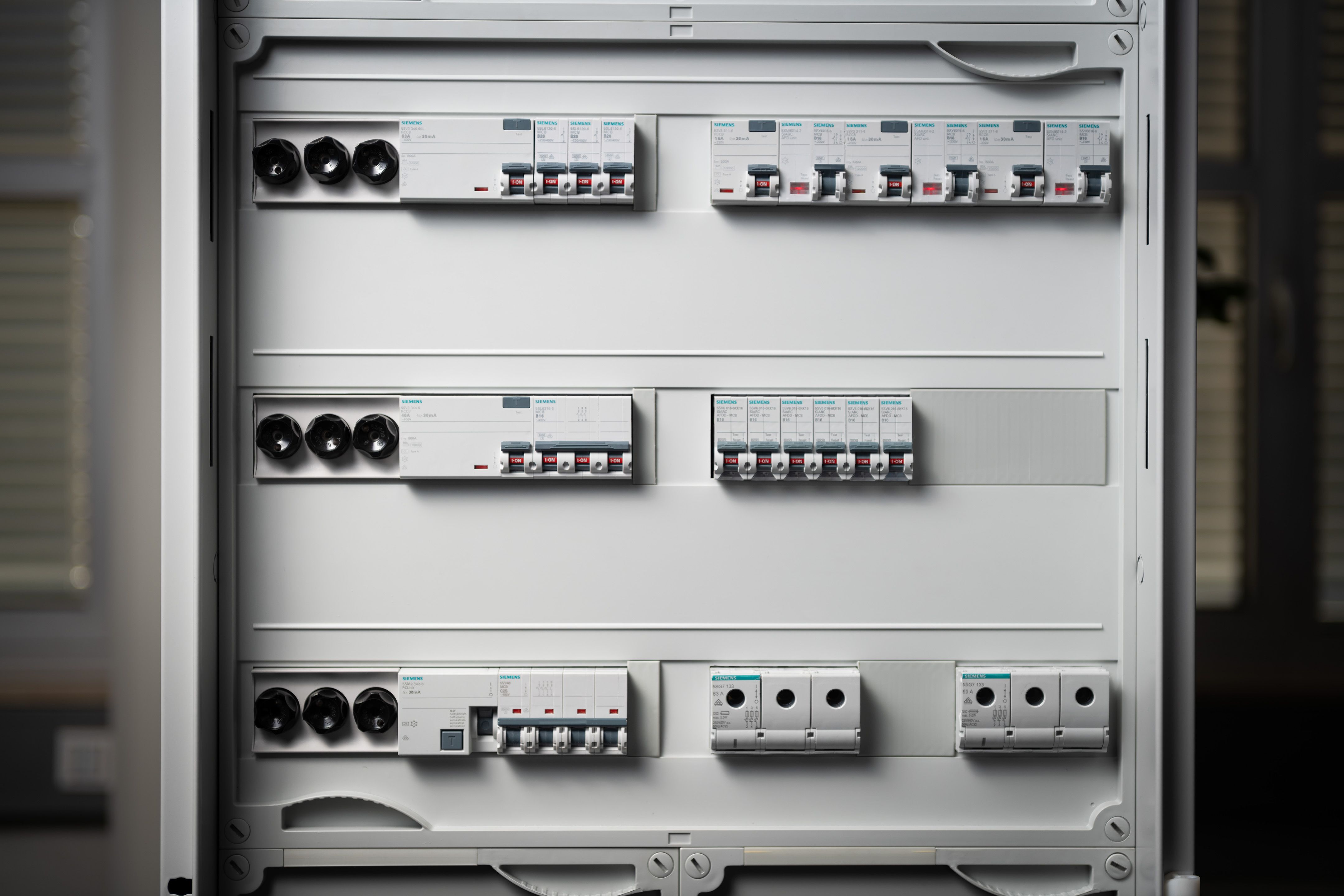

How does an arc fault detection device work?
