CADdoctor streamlines 3D data utilization beyond simple CAD-to-CAD translation. It offers advanced capabilities to detect and heal errors, optimizing data for downstream processes like FEA mesh generation. By using CADdoctor, you can maximize your 3D data's potential, freeing yourself from complex integrations, time-consuming errors, and project delays, ensuring certainty in your 3D data.
CADdoctor provides high-fidelity 3D translations between multiple CAD formats that goes beyond simple mechanical translations.
CADdoctor automatically detects and repairs hidden product data quality (PDQ) errors for the consumption in downstream process.
CADdoctor simplify model geometry to optimize CAE mesh generation by recognizing geometry features and removing them automatically through de-featuring.
Implemented an automated CAD-to-CAE process with built-in data healing and defeaturing by CADdoctor to streamline model preparation.
Significantly cut design-to-simulation time and cost. In one case, processing time dropped from 2 days to just 1 hour.
The supplied STEP file from E-CAD is sent to CADdoctor to be processed into a singular collapsed Part. Identify the similar parts to make them “shared parts” in CADdoctor. Solve the heaviness of these imports. Reduce the total number of parts/volumes to share them
Automatically create a light-weight model from a huge assembly model. Can remove holes, grooves, and protrusions Can replace volumes with simple shapes.

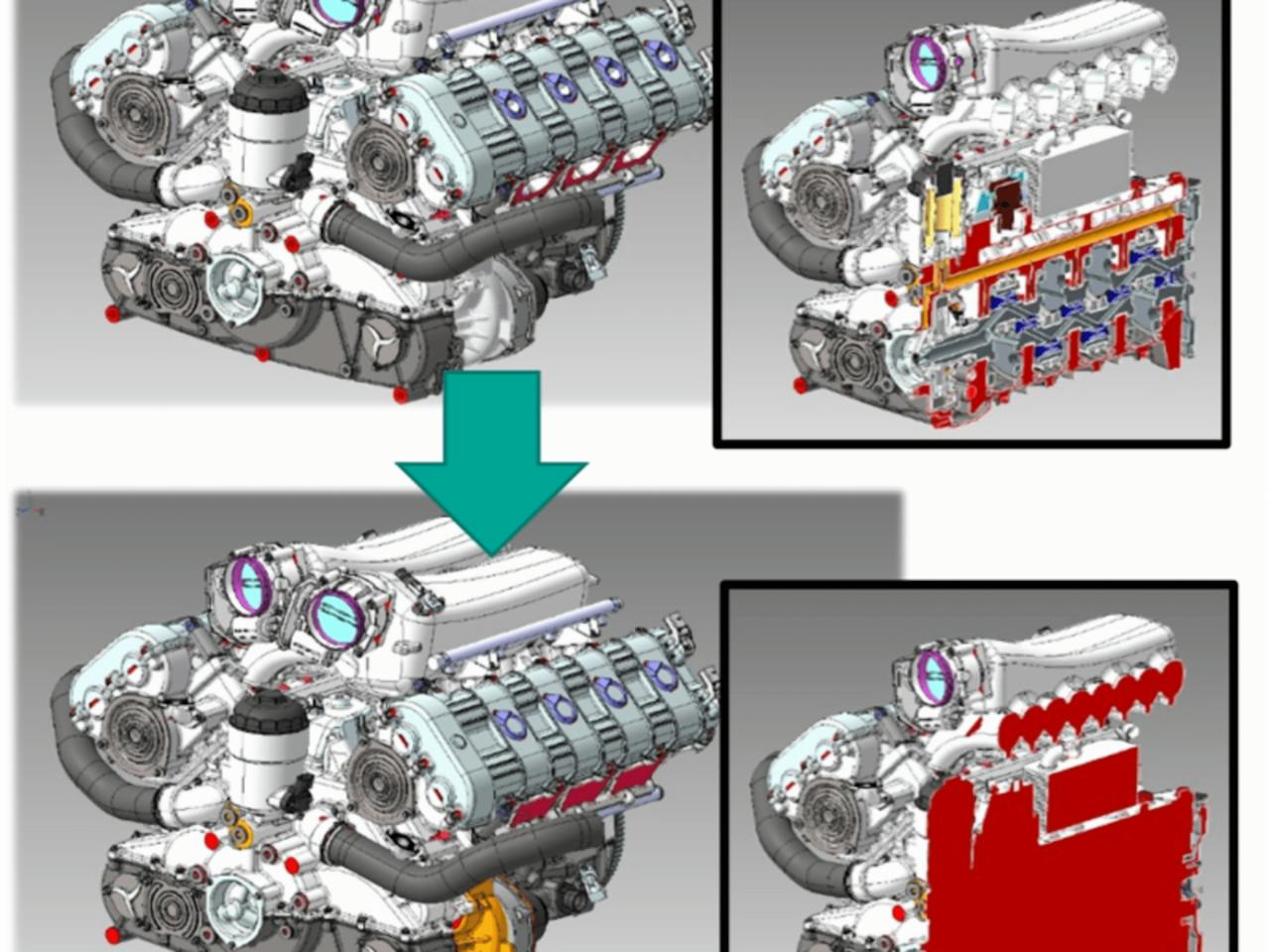

Create simplified versions of assemblies into a single part while remove internal IP information. Automatically delete internal geometry with a click of a button. Exchange complex datasets without security risk with much less time Easier handling with less data size
