Our ALPHA 3200 Eco power distribution boards are designed to meet the requirements of modern power distribution in the building infrastructure. Project time is reduced due to digital engineering and a modular system concept. They offer holistic solutions from a single source and are part of a consistent system complemented by the SENTRON portfolio of protection, switching and measuring devices - all perfectly suited for their applications and fully compatible.
Thanks to the centrally positioned busbar, you can save up to 30% of copper. ALPHA 3200 Eco switchboards are also optimized for up to 3,200 A.
Benefit from greater planning safety with detailed 3D engineering. Our 3D data is available in multiple formats, including STEP, BIM, and EHRT.
ALPHA 3200 Eco switchboards deliver high functionality in a small space due to flexibility of ALPHA assembly kits. They also provide application-related certifications.
Protection system (IEC 60529, EN 60529) | IP31, IP54 |
Busbar rated current (In) | 3,200 A |
Busbar rated operational voltage (Ue) | 400 V |
Busbar rated peak withstand current (lpk) | 165 kA |
Busbar rated short time withstand current (Icw) | 75 kA, 1 s |
Height | 2,000 mm |
Depth | 400 mm/600 mm |
Standards and provisions | System for installation of a type-tested switchboard: IEC 61429-1/-2 |
Form of internal separation | Form 1 (with touch protection) |

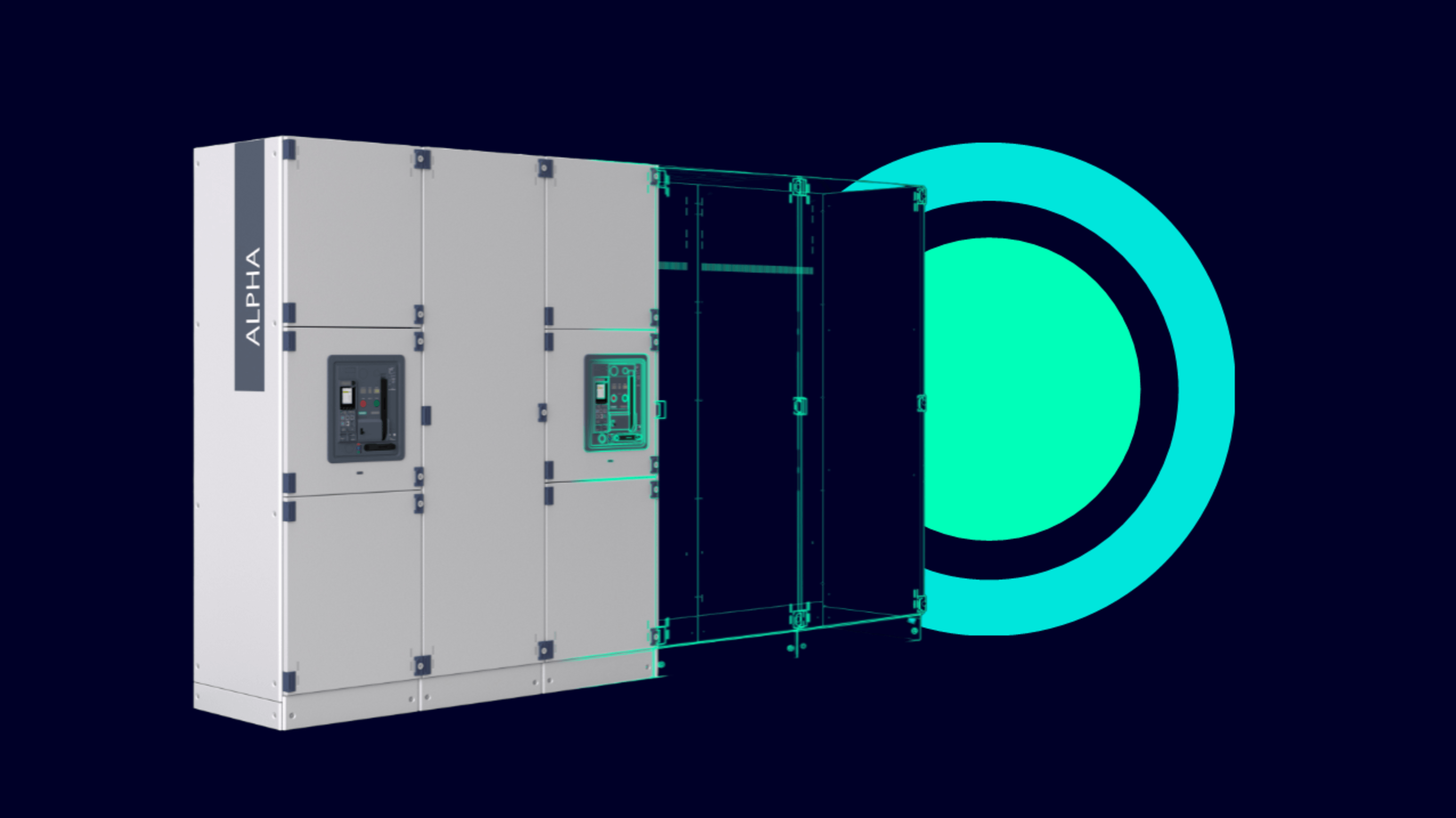

The ALPHA 3200 Eco switchboards offer significant material savings compared to classic power distribution systems: they save up to 30% of copper thanks to the centrally positioned busbar and countless design breaks of your ALPHA 3200 Eco switchboard. With a long lifetime of more than 30 years on average and its repairability - no need for special tools and all components available as spare parts - you benefit from longevity and easy maintenance. Thanks to its modularity, you can also upgrade your existing ALPHA 3200 Eco switchboard when new functionalities become available.
Electrical power distribution in modern buildings must ensure a reliable power supply, optimize energy consumption, and be integrated into building automation easily. SIMARIS configuration makes the increasingly complex planning of power distribution boards simple and efficient. The intuitive configuration software enables consistent planning on one single platform. Thanks to its intuitive operation and standardized processes, it minimizes planning faults and significantly accelerates project engineering. With SIMARIS configuration, you can quickly and reliably create standard-compliant switchboards that meet all the requirements of modern building technology including all required documentation.
Until now, generating a digital twin from STEP data was a tedious and complex process. Now we’re making the switch to 3D engineering extremely simple. Thanks to the new 3D processor, you can export the digital twin of your ALPHA 3200 Eco power distribution board from SIMARIS configuration with one click and then export it as a STEP file via SIMARIS xchange. With its detailed visualization, the digital twin offers added value in many areas, from planning to maintenance and expansion.
Benefit from detailed visualizations down to the last screw
In addition to the quick and easy generation of the digital twin, you also benefit from an extremely high level of detail that simplifies your work in multiple applications. By using the 3D model for plant and building planning, dimensioning copper parts, system installations, and maintenance and expansion: you benefit from high precision and reduced errors as well as save time and money. The process steps also require less specialized knowledge, thus eliminating work for you as a panel builder.
The demand for photovoltaic systems in Germany is growing rapidly, with more rooftops feeding electricity into the grid. As capacity increases, safe and standard-compliant measurement becomes essential to ensure reliable monitoring and accurate grid feed-in.
Thanks to an integrated transformer metering section, the APLHA 3200 Eco switchboard is ideal for applications with renewable energies – from solar and wind power to decentral infeed. This enables precise, secure and grid-compatible measurements even at higher power levels – to perfectly equip you for the energy transition.
Advantages:
