SIVACON 8PS BD2

Why SIVACON 8PS BD2?

The modular BD2 busbar trunking system is the universal solution for high performance within a small footprint, requiring little space yet offering maximum flexibility to adapt to changing production conditions.
The system's safe and reliable operating characteristics are convincing features:
In case of fire, proven fire barrier and functional endurance ensure a high level of safety and security – an optimum solution for large buildings. The BD2 system scores high marks in industrial applications as well as in shipbuilding. The BD2 system is not only appropriate for AC applications, it also transmits direct currents up to 2,160 A.

Key Benefits

Unlock a range of applications - from AC to DC

The BD2 system is universally applicable for flexible power supply to consumers in industry and trade, power transmission between points of supply, as riser line in high-rise buildings or in shipbuilding.

Manage your energy data – systematically

The powerline 2.0 technology enables rapid data transfer directly via the busbars, without additional wiring. Ideal for transparent operation in your industry or infrastructure, or electromobility infrastructure.

Choose a proven system for high safety

The BD2 system is well-suited for applications with increased safety requirements. Tested fire barrier and functional endurance in case of fire ensure a high level of safety, ideal for large buildings and industrial applications.

Featured capabilities

Universally applicable, extremely adaptable

Prefabricated tap-off units with various fittings enable universal application, for example for power distribution between two supply points, as a riser line in high-rise buildings or to feed power to the smaller BD01 system.

Applications for 8PS powerline technology.

Easy and quick installation with access protection

Anti-rotation feature and guided installation enhance safety during installation. Single-bolt terminals with expansion compensation ensure quick installation. 3D junction units allow a flexible adaptation to building structures.

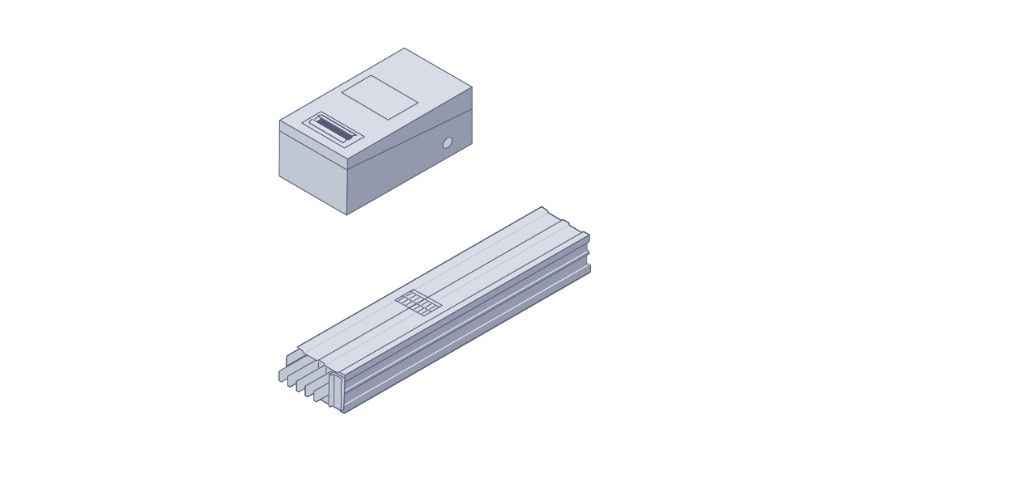

Direct current applications

With the BD2 system, you can transmit direct current up to 2,160 A. Using so-called energy units with appropriate switching and protection devices, the direct current is simply tapped and led to the consumers.
